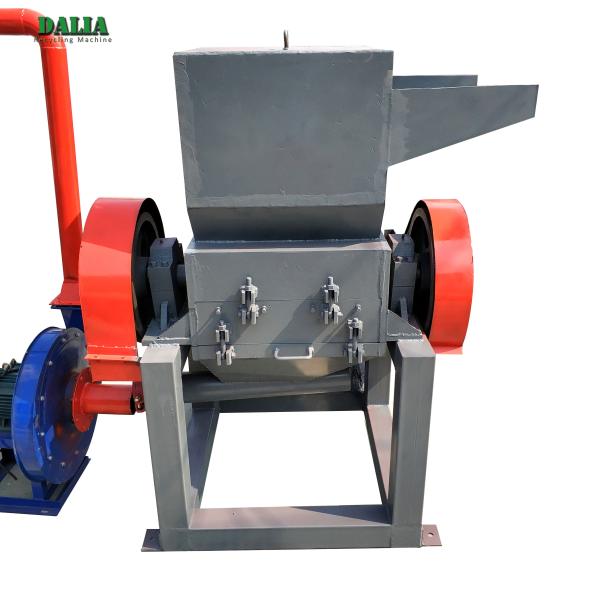

Compact Copper Wire Granulatorwet small cable granulator copper
wire cable recycling machine
Wet crap cable/wire/plug recycling machine (Cable granule
separation equipment)- To process waste cable and wire. Get the
copper separated from waste cable and wire through crushing and
gravity separation process, no copper at plastics and no plastics
at copper. No incineration and pollution. It is in compliance with
EHS standard, no harmfulness to workers, eco-friendly solution for
waste recycling.
Automatic process, stable performance, easy for operating, easy to
maintenance, high recycling rate.
Way for us
1 : All of oil hole must be filled with mechanical butter before
operation (once a week)
2 : The water tank must be filled with water
3 : Press the power buttons in the following sequence: water
pump/segregating unit/grinder.
feed water level regulation
1 : Adjust the water level according to the quantity of PVC/rubber
particles and copper particles on the separator plate.
2 : If there are more PVC/rubber particles in copper particles, the
water level could be appropriately adjusted higher.
3 : If the PVC/rubber particles don’t go up with copper particles
together, the water level could be appropriately adjusted lower.
The way to replace the screen
1 : Replacing the screen is aimed to increase working efficiency,
separating the PVC/rubber particles and copper particles
completely.
2 : When replacing the screen, firstly, open the right cover of the
grinder; then, loosen the screw of screen to remove it; finally,
put the ideal screen into it.
3 : Replacing the screen according to the wire diameter
(communication wire: Φ2-2.5mm;
electric wire: Φ2-2.5mm;other wire: Φ3-5mm)
4 : Adjustment of the screen: The ideal distance between the screen
and the rotary cutter is about 1mm.
The way to sharpen knives
1 : Rotary cutter: Sharpen it by grinder and hold the blade at the
ideal 15 degrees. ( No need to remove the blade).
2 : Stationary knife: Sharp it by grinder or grinding machine after
removing the stationary knife.
3 : Knife adjustment: The ideal distance between rotary cutter and
stationary knife is about 0.2mm.
FAQ
*1 Payment accepted: After confirming all the details with our sales,
we will make contract for you to make deposit first and the balance
need to be cleared against shipping. Generally we accept most of
the payment methods like TT, L/C, PayPal, West union, Moneygram.
*2 Lead time: 7 working days against your deposit.
*3 What about the quality: We use the best NATIONAL certified steel
and high manganese steel for the blades to make our products 1.5
times than other factories.
*4 Warranty: 12 months warranty and life time service. (We have
engineer available to serve overseas)
*5 Certificate: ISO, CE, CCC
*6 How can I get to your company: We are located in Gongyi City. You
can fly to XINZHENG INTERNATIONAL AIRPORT and we will pick you up
there.
