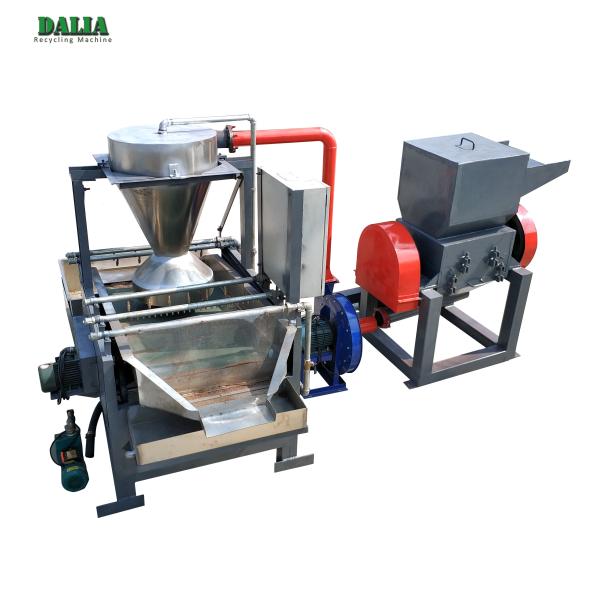

Energy Saving Scrap Copper Wire Recycling Machine 50HZ Stable Operation

Processing Procedures:

• Put wires and cables into the crusher, in which they are crushed and plastic sheath and copper separated completely. The length of the crushed material is based on the mesh of the riddle: the bigger the mesh is the longer the crushed material will be and the larger the output will be. The mesh should be chosen in production according to the type of the material.
• The crushed material (mixture of copper granules and plastic pieces) is conveyed to the separator by the conveyor, during which procedure dust and part of plastic pieces of light weight(including fiber, rope, or tapes, etc. mixed in the wires) are collected by the pressure-reducing blower. The above opening of the pressure reducing blower is connected with the dust collector opening in which a dust collecting bag is used to prevent discharge of dust for the purpose of environmental protection. Dust and part of plastic pieces of light weight are collected in this bag and will be discharged when the bag is full.
• The separator is used for separating plastic pieces and copper granules. According to the differences of the physical properties and specific gravity between different materials, there is specific gravity deviation under the forces of Aerodynamic and Vibration friction. By adjusting the speed of material conveying and amplitude parameters, copper granules (of larger specific gravity) will move to the riddle bottom and move from down to up, and plastic pieces (of smaller specific gravity) will move to the above of copper granules and move from up to down, and in the end they will both be discharged through different openings.
• All the units are installed on the Underbed to form a whole structure. The machine is adjusted ready for production before shipping, and the customer only need to connect it to the power supply.

Features:
This Scrap Copper Wire Recycling Machine is used for recycling scrap copper wires and cables, like automobile wires, telecommunication wires, and other kinds of copper wires, in order to recover copper. This machine is consisted of Crusher, Crushed Material Channel, Vibrating Separator, Air Blower, Dust Collector, and the Underbed, etc..

Waste copper wire recycling machine Application(raw materials):
Applicable cables: Waste communication copper cables, motor cable, car cable, industrial cable,household cable, enamelled cable.
Applicable cable diameter: 0.3-20mm
